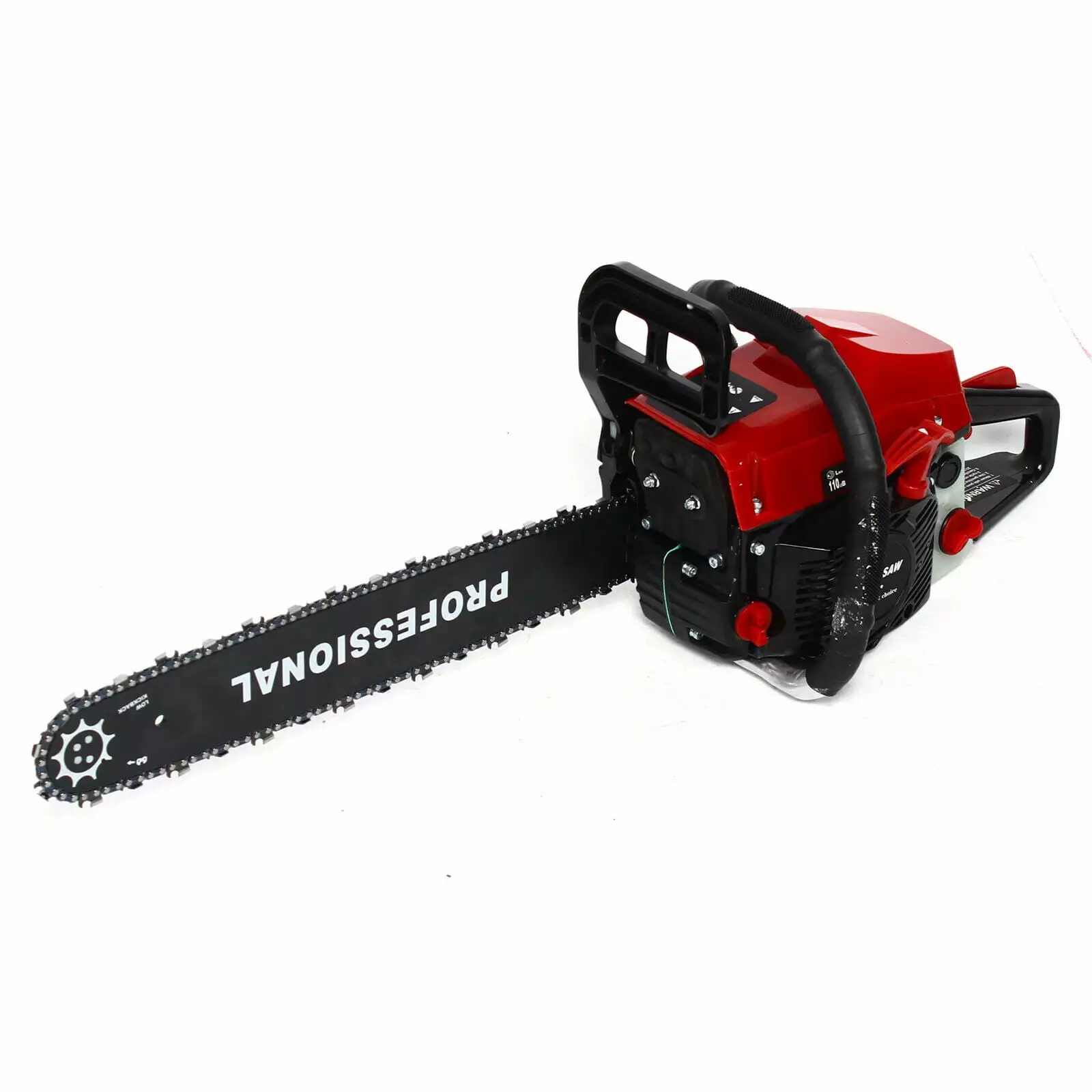

YIYIBYUS 62cc Gas Chainsaw 20 Bar Gasoline Powered Chain Saw Wood Tree Cutting Garden Farm Tool 2-Stroke Top Handle

    This chain saw is sharp to cut the twigs. branches. bushes. shrubs and trees. The saw is waterproof and rustproof. easy to clean with water. With exceptional hardness and durability. it is good for sawing. cutting. pruning and trimming wood. perfect tool for gardening. wordworking. landscaping.

Specification:

Color: black+red

Material: metal.

Bar Length:20 in

Pitch: 0.325”

Sprocket: 7T*0.325”

Chain width: 0.058”

Power:4000W

Gas Displacement:62CCcm3

Rotating Speed:12500rpm

Highest Speed Chain:15000m/s

Fuel capacity : 550ML

Oil capacity : 260ML

Voltage:12 V

Gross weight:6.5kg

Size:58*27*33cm

Features:

– Sharp to cut the twigs. branches. bushes. shrubs and trees.

– Good-quality slip-resistant. comfort grip handle. comfortable and easy for cutting wood. effective to increase working efficiency.

– Waterproof and rustproof. easy to clean with water. durable for long-lasting use.

– Good for sawing. cutting. pruning and trimming wood.

– Perfect tool for gardening. wordworking. landscaping.

NOTE:

Installation Manual Is NOT Included

Professional Installation Is Highly Recommended

Structure chart:

Guide chain installation step diagram:

Step1: Install the guide plate

Step2: Install the chain

Step3: Align the holes to install the side cover and screw on the nut

Step4: Adjust the tightness of the chain

Step5: Sleeve lock nut

Fuel injection volume can be adjusted

Step1:

Add engine oil. The function of engine oil is to lubricate the chain. so you must wait for the oil to spray out before you can go to the tree.

Step2:

Add gasoline. The ratio of gasoline to oil is 25:1 or 20:1. 20:1 is recommended (must be two-stroke oil. and Mobil two-stroke oil is recommended). Do not use four-stroke engine oil or other engine oil. otherwise it will easily cause cylinder pulling or other problems

1. Pull up the flameout switch

2. Pull out the damper

3. Pull the start handle

Pull the start handle 3-6 times. When you hear the machine banging. push the damper back in. otherwise the machine will not start.

4. Close the damper

Turn off the air door. pull the start handle 1-3 times again. you can start normally

Package includes:

1 xHand saw

1 xFunnel

1 xProportioning pot

• Easy to Use – The chainsaw big rope wheel and easier starter can let the machine start easily. and reduce half of the resistance. Easy use and overall reliable. also safety with its safety valve throttle switch
• Comfortable Handle – It has soft rubber handle which is very convenient for carrying. Durable die-cast chassis. lightweight. aluminum alloy and efficient
• Wide Applications – This chain saw is sharp to cut the twigs. branches. bushes. shrubs and trees. The saw is waterproof and rustproof. easy to clean with water. With exceptional hardness and durability. it is good for sawing. cutting. pruning and trimming wood. perfect tool for gardening. wordworking. landscaping
• Ergonomic Design – The slip-free handle surface uses new ABS plastic materials. makes this chainsaw balanced. maneuverable. and comfortable to operate. use more secure
• High Efficiency – The gas chainsaw has 62CC engine with 2-stoke. speed can be up to 12500 rpm. and delivers steady power to the 20-inch bar and low- kickback chain. Reduces fuel consumption up to 20%;whose cutting diameter is from 27-33inch. can meet most of your demand
