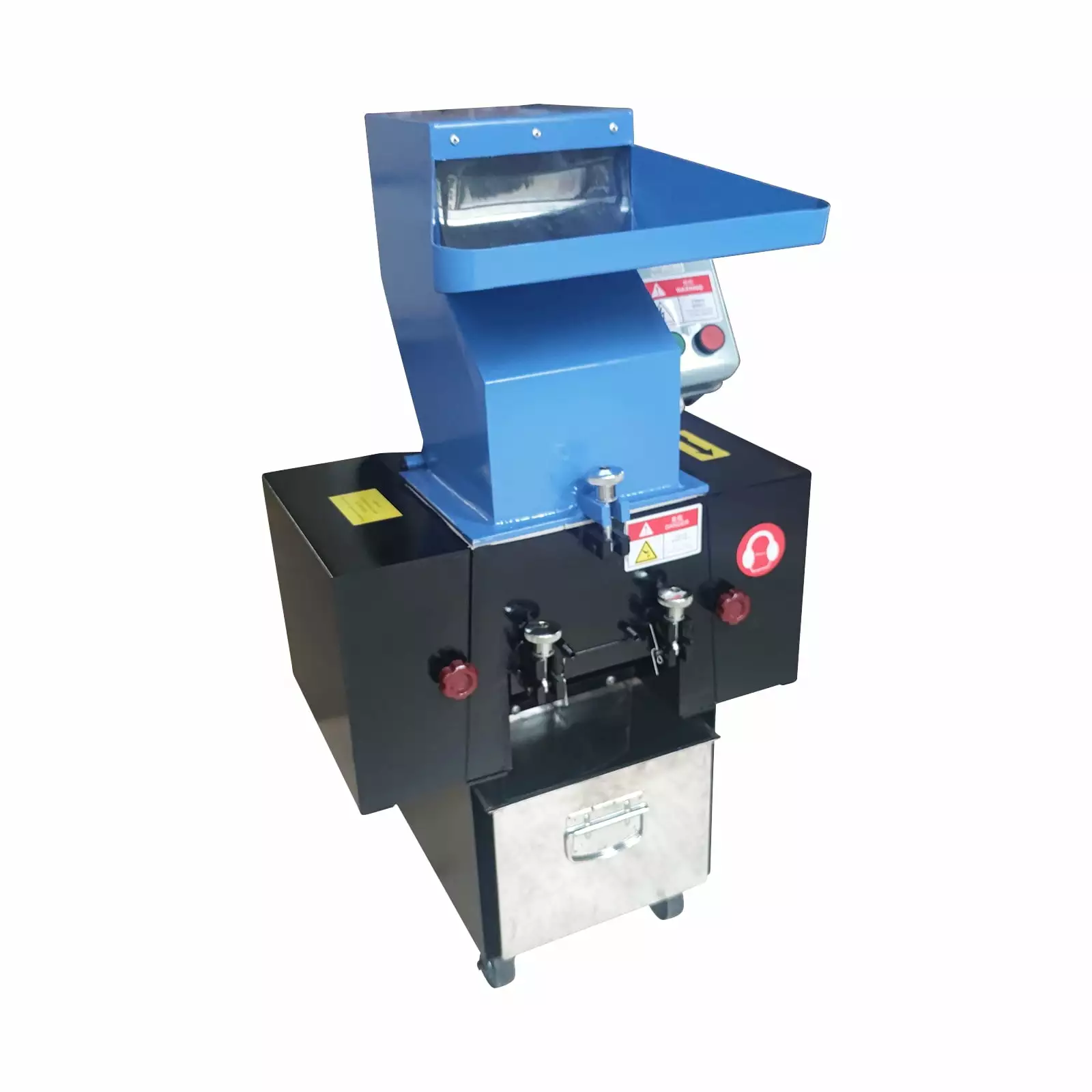

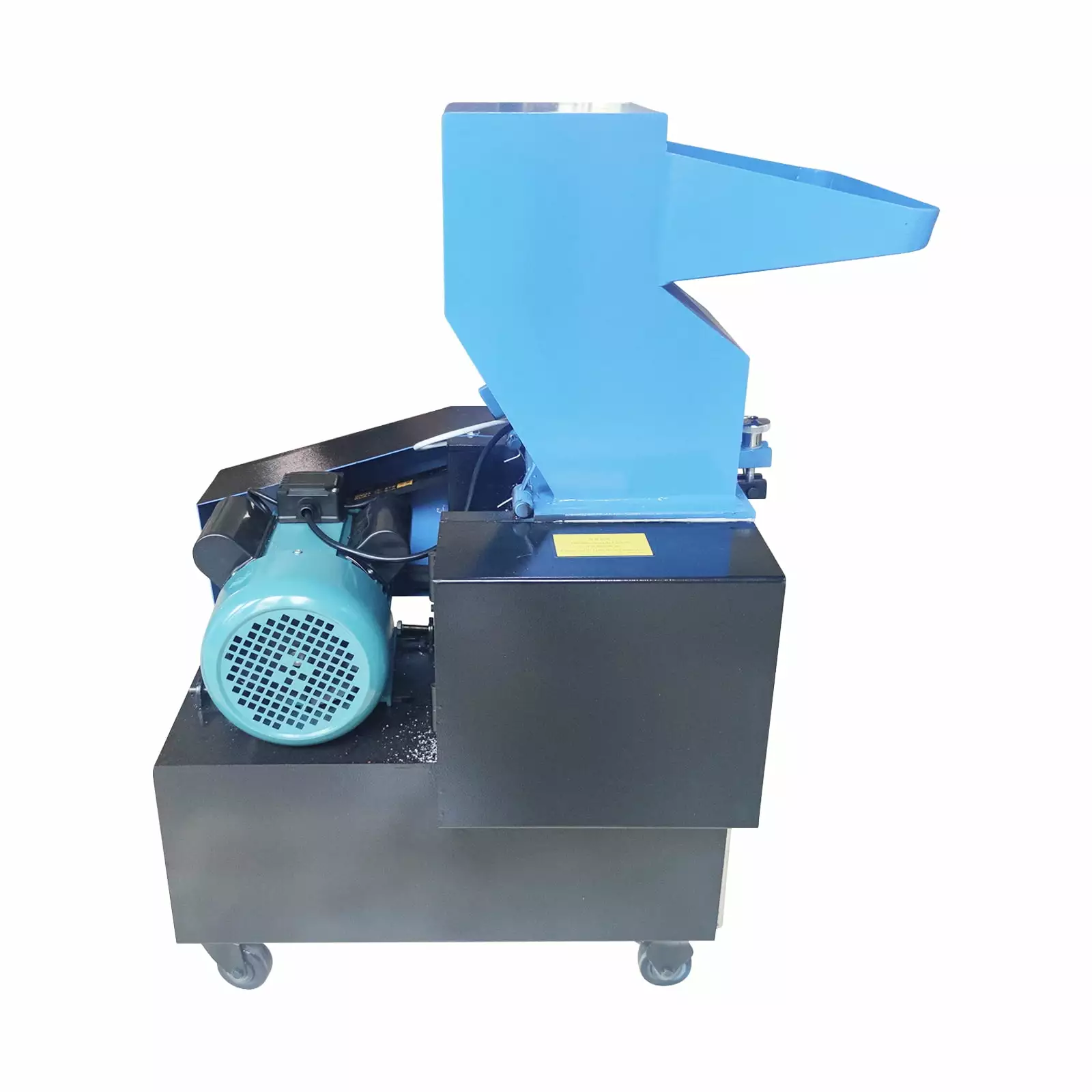

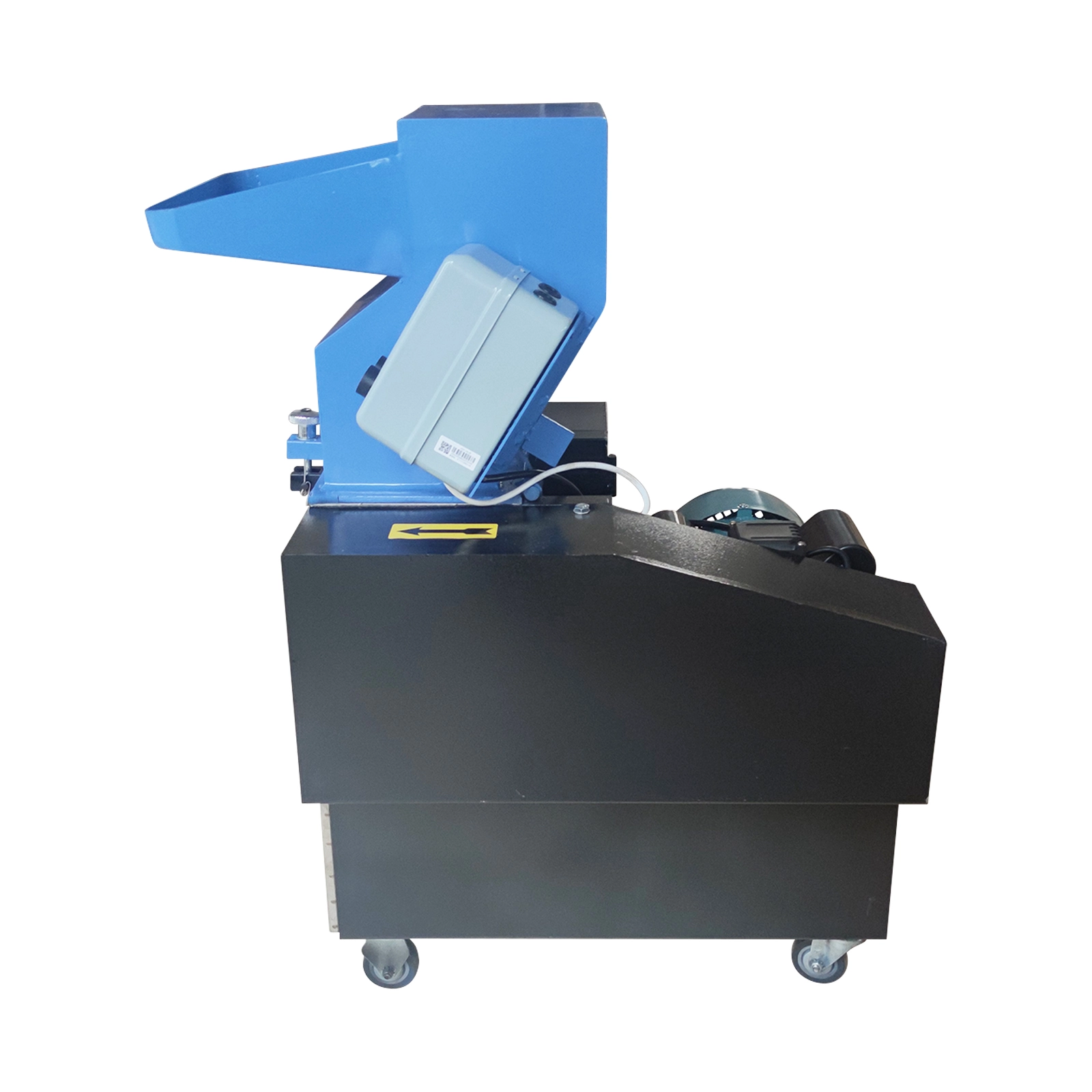

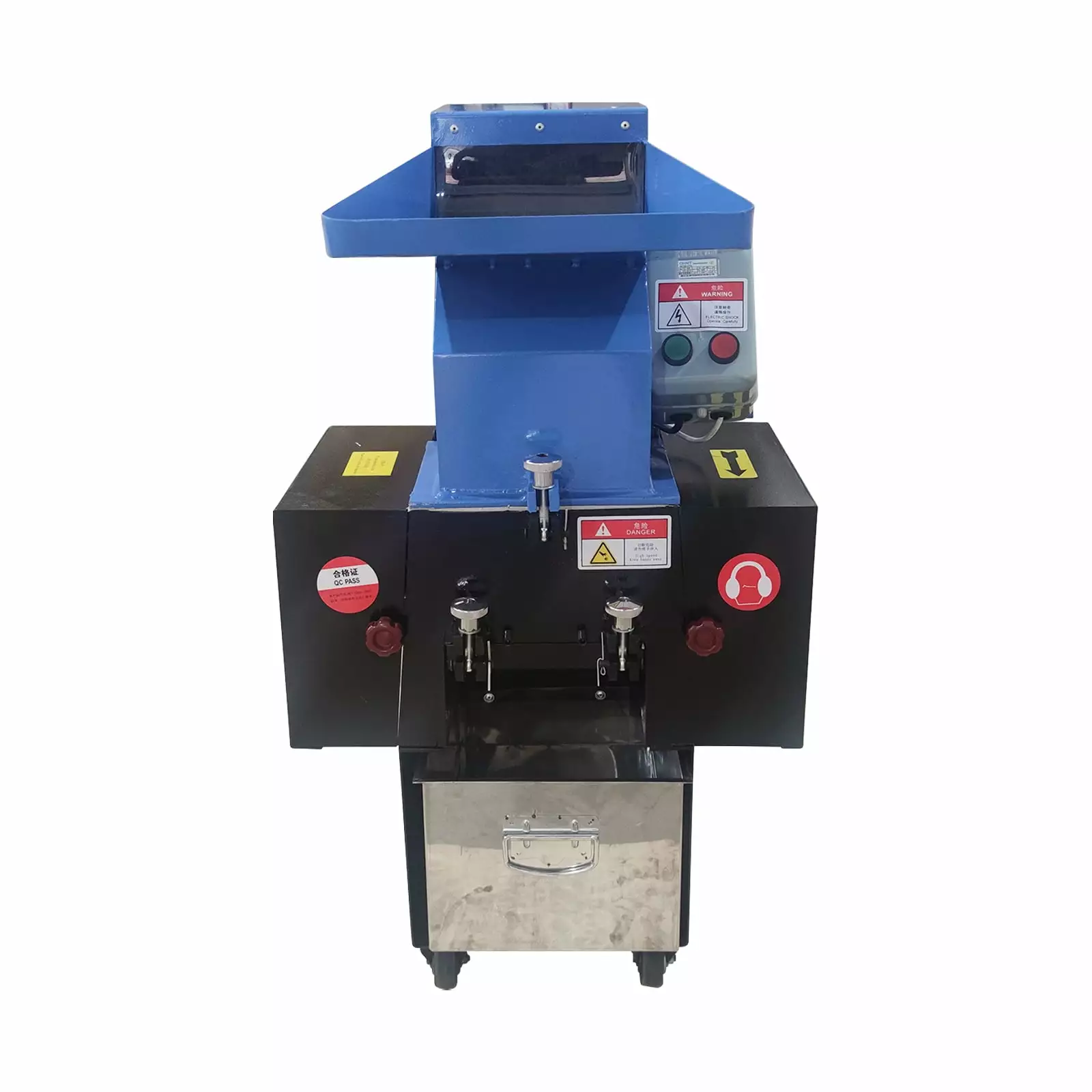

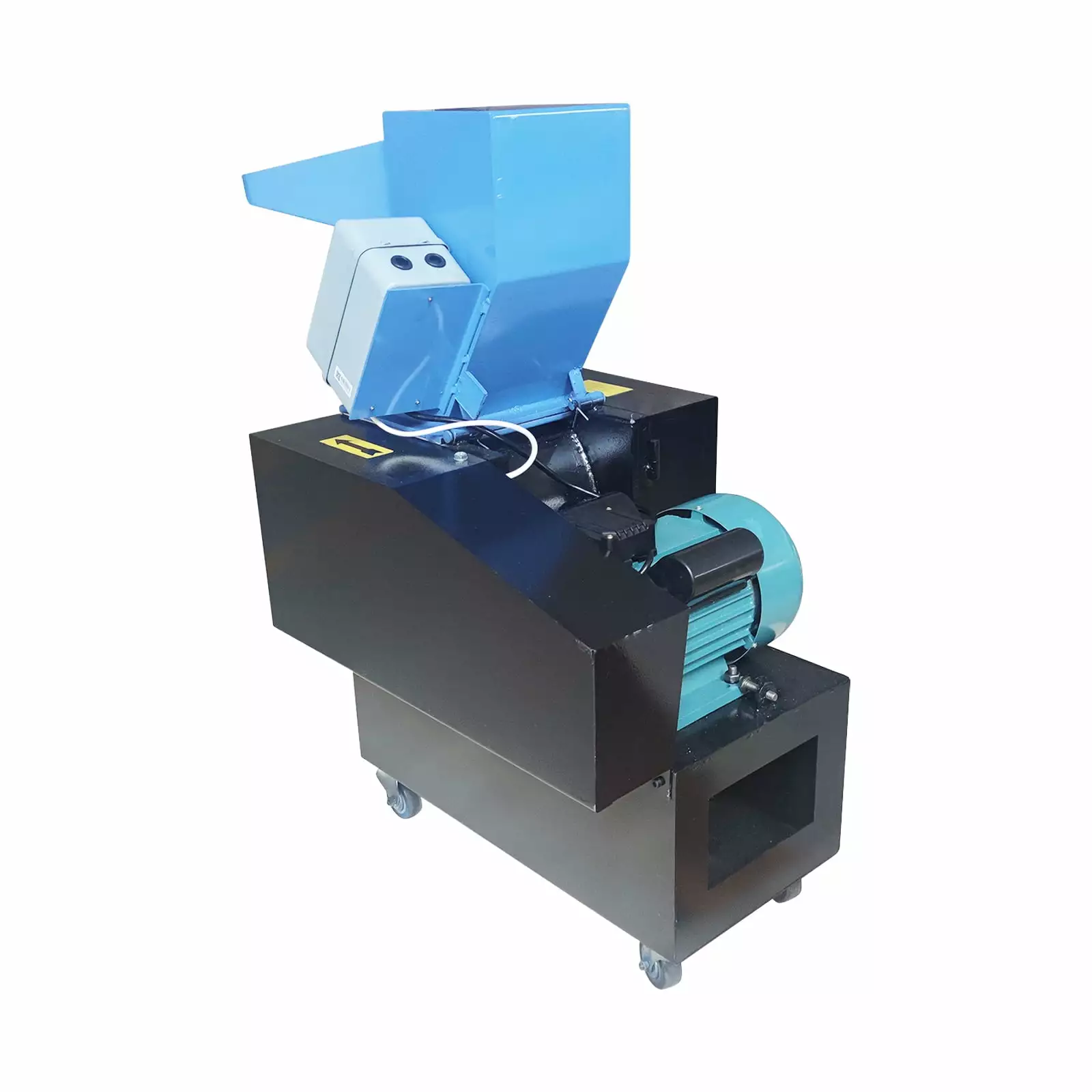

Techtongda Multifunctional Plastic Granulator Grinder Plastic Shredder Bottle Chipper for Plastic Bottle. Rubber. Wood. Grain. Herbs Blue 180 Type 220V

Detailed description:
Model:PC180 blue
Spindle material:45#steel
Voltage:220V
Screen aperture :6mm
Power:2.2KW
Screen material:45#steel
Rated current:13.85A
Feeding hopper opening method: manual
Transmission mode: belt ( length 1016mm)
Crushing capacity: 50-100KG/H
Number of Movable Blades: 9
Diameter of crushing chamber: 150*200mm
Number of Fixed Blades: 2
Feed port dimension : 110*180mm
Blades material: alloy steel(9Cris)
Dimensions: 630*520*950mm
Spindle speeds:520r/min
Whole machine weight: 120kg
Handled Material Size??95*95mm
Color:blue

Note:
If the hardness and structure of the material are not considered. the maximum size that this type of machine can handle is about 95*95mm. and the thickness is preferably within 10mm. This is only a reference. Due to the variety of materials. we can provide you with experience based on experience. The materials are analyzed to determine whether they are suitable. Welcome to inquire before purchasing.

Feature:
1.High quality material. long service life
2.Microcomputer controlled controlling system. safe.easy operate. low working cost
3.Precise technical parameters. easy maintenance and simple removal. stable operation. low noise

Product Details:
1.Thickened double-layer board production. powerful Mute
2.Alloy steel blade.extremely sharp
3.Pure copper motor.full copper wire wrapping. stronger power

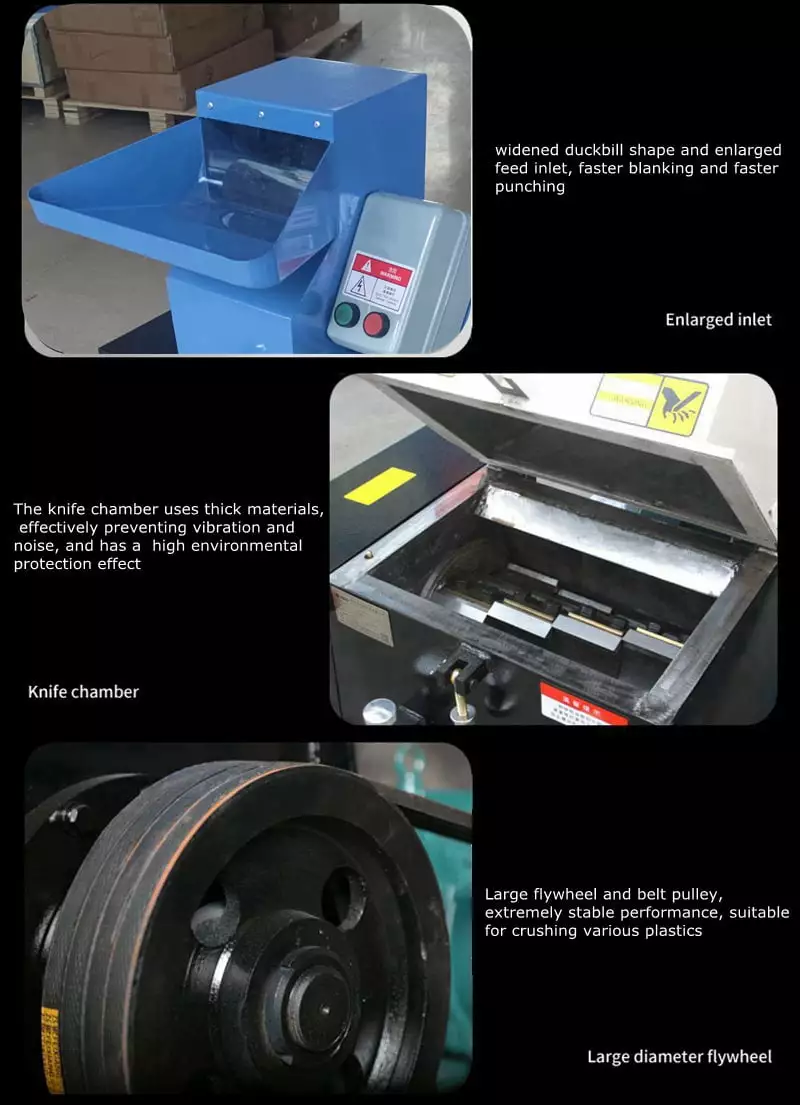

4.Enlarge inlet. widened duckbill shape and enlarged feed inlet. faster blanking and faster punching
5.Knife chamber. The knife chamber uses thick materials. effectively preventing vibration and noise. and has a high environmental protection effect
6.Large diameter flywheel. Large flywheel and belt pulley . extremely stable performance. suitable for crushing various plastics

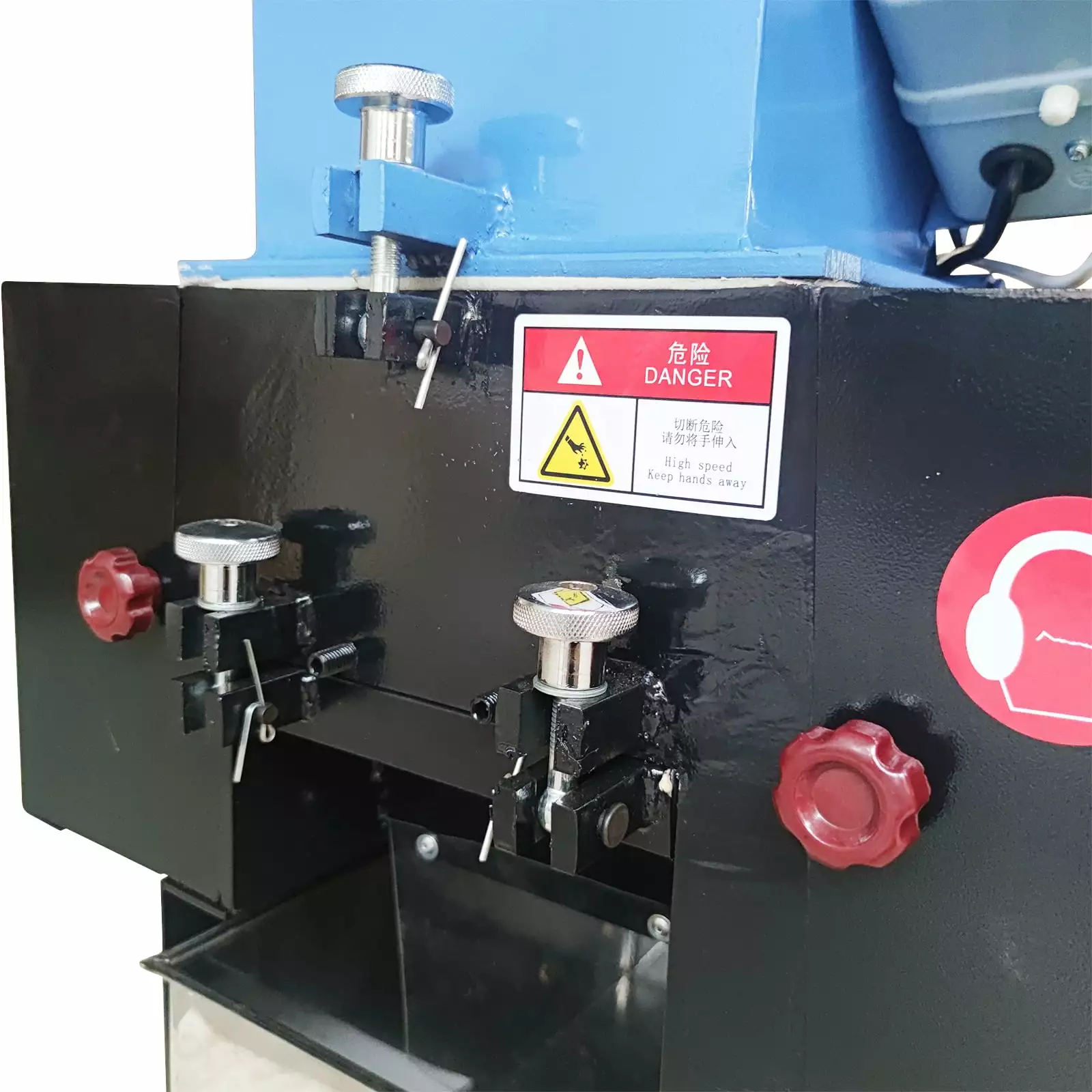

7.Lock nut. Tighten by hand before tightening with a wrench. easy to operate. humanized design. good hand feeling
8.Extra long material receiving drawer. Enlarge and extend the drawer. only for more storage. and more convenient for customers to take materials

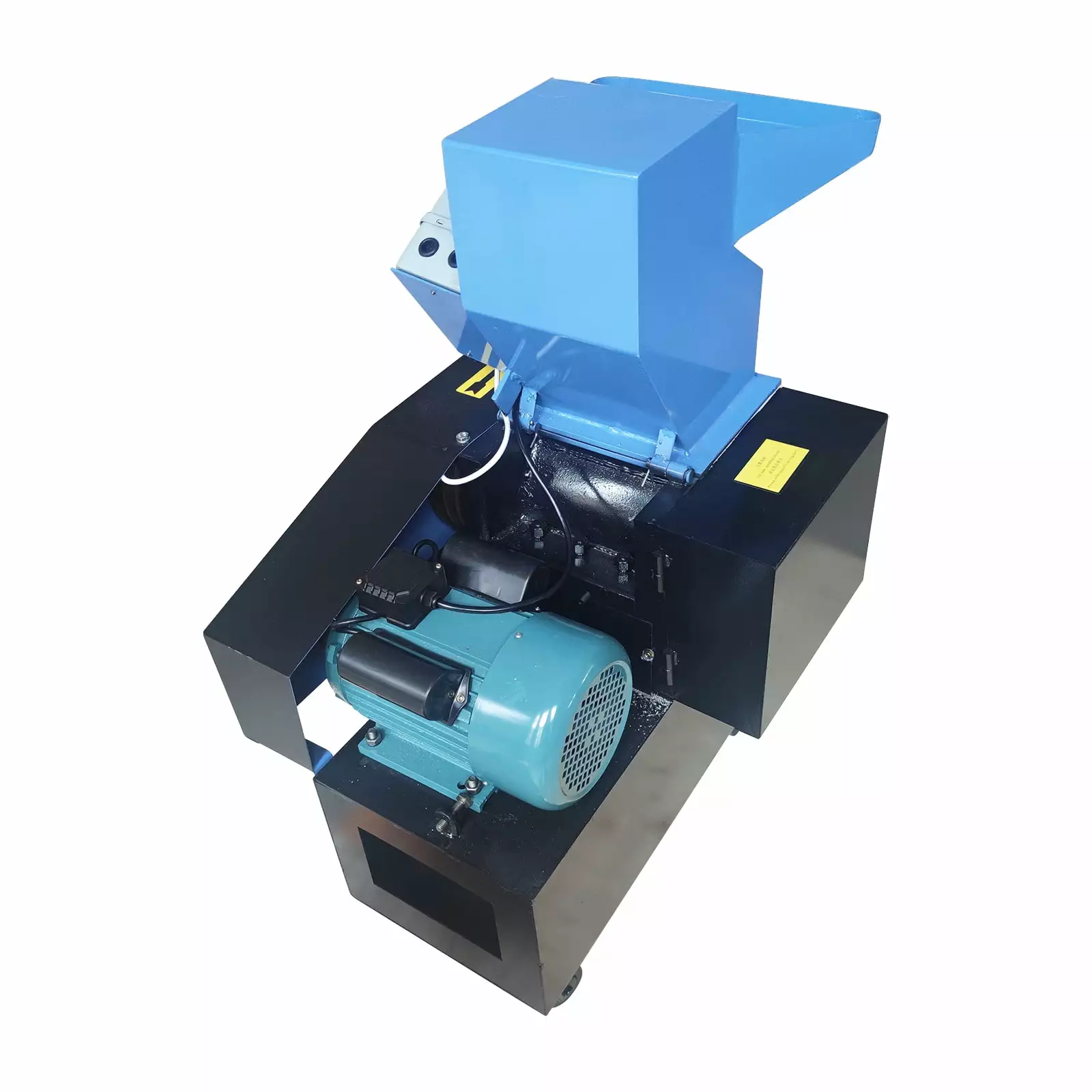

9.Brand motor. As the heart of the device. the motor has stable performance. minimal failure rate and long life
10.Customizable screen mesh. The size of the output depends on the size of the screen mesh. the choice is more flexible
11.Tool steel refined step knife. tool clearance can be adjusted. after blunt can be repeatedly removed from grinding

Item Included:(290039):
Techtongda 180 Type Plastic Crusher Bottle Chipper Plastic Shredder Disintegrator Electric Grinding Granulator Machine 220V 2.2kw Blue

• [Multifunctional crusher]- Can shred wood. plastic. nylon products. cloth. paper. circuit boards. PP/PC. PA/PE. PVC. PET/ PS. FRP. aluminum bottle caps. spices. corn. grain and etc.
• [Unique cutter blade]- The cutter is made of special stainless steel. which is extremely sharp and durable. The cutter gap is adjustable. and the blade can be disassembled and polished after it becomes dull.
• [Excellent design and reliable materials]- Adopts split design and copper core motor. The hopper. main body and filter screen can be disassembled for easy cleaning and maintenance.
• [Silence working]- The crushing room is made of double-layer sound insulation and thickened double-layer plates. which is powerful and quiet. and low noise.

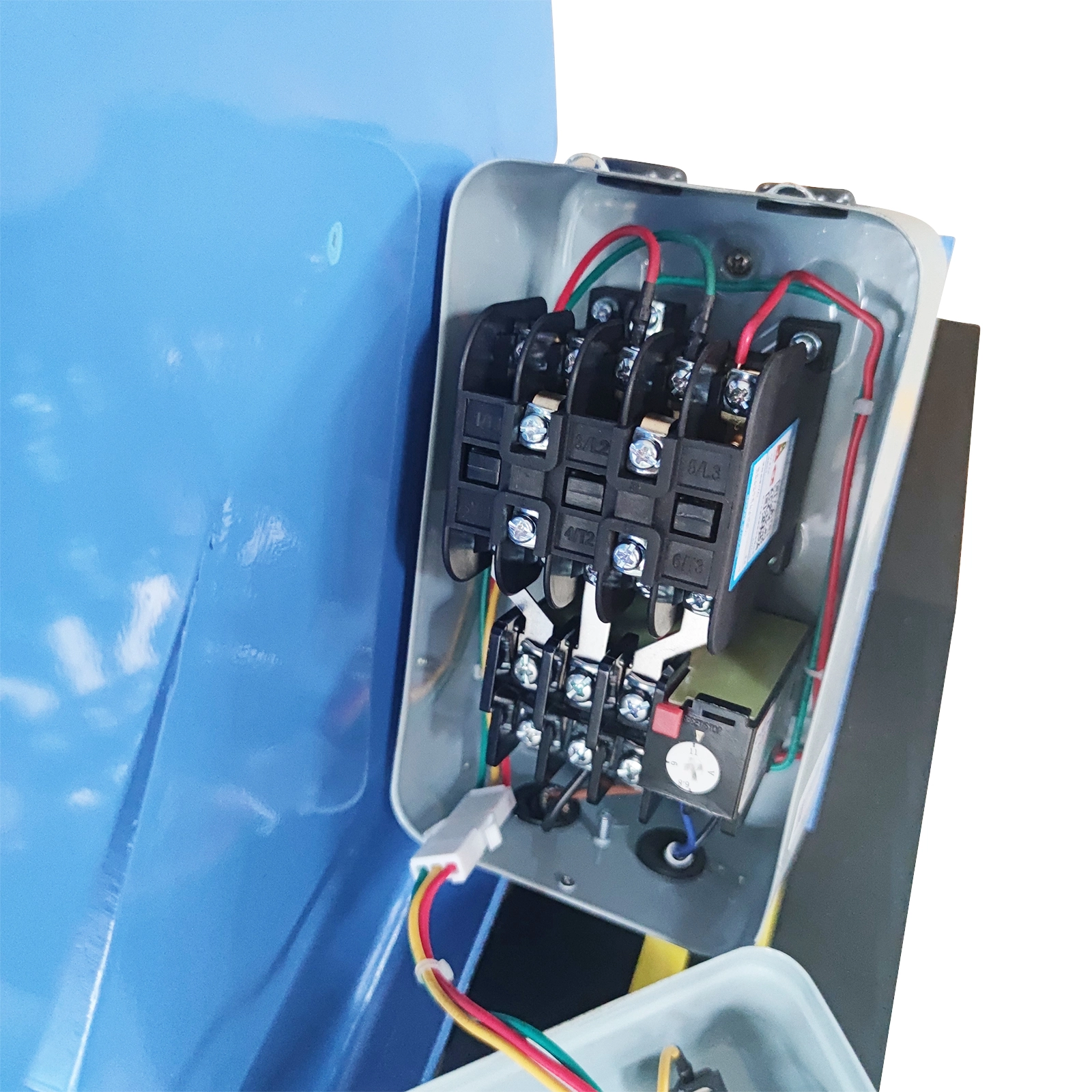

• [Safe and smooth]- The machine motor has overload protection and power chain protection device. which doubles the motor protection and user safety.
